基于浮动路由的SLA部署

toki02

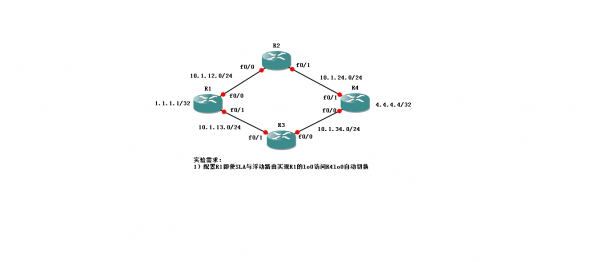

R1-config
ip sla 1
icmp-echo 10.1.24.4 source-interface Loopback0
timeout 2000
frequency 5
ip sla schedule 1 life forever start-time now

track 1 rtr 1 reachability

ip route 4.4.4.4 255.255.255.255 10.1.12.2 track 1
ip route 4.4.4.4 255.255.255.255 10.1.13.3 5
ip route 10.1.24.0 255.255.255.0 10.1.12.2

测试结果
R4(config-if)#int f0/1
R4(config-if)#shut

R1#ping 4.4.4.4 sou lo0 re 10000

Type escape sequence to abort.
Sending 10000, 100-byte ICMP Echos to 4.4.4.4, timeout is 2 seconds:
Packet sent with a source address of 1.1.1.1
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
!!!!!!!!!!!!!!!....!!!!!!!!!!!!!!!!!!!!!!!!
