双核心问题

Demon、

突然想到双核心的构建，网上看了些资料，自己又搞了个拓扑，但是不通，希望各位帮忙看下是什么问题，新手一只，希望大神们帮帮忙啊、
我想得是两台三层交换机各分担一个VLAN。

S1#show running-config
Building configuration...
Current configuration : 1198 bytes
!
version 12.2
no service timestamps log datetime msec
no service timestamps debug datetime msec
no service password-encryption
!
hostname S1
!
!
!
!
spanning-tree mode pvst
!
interface FastEthernet0/1
switchport mode trunk
!
interface FastEthernet0/2
switchport access vlan 10
switchport mode access
!
interface FastEthernet0/3
switchport mode trunk
!
interface FastEthernet0/4
!
interface FastEthernet0/5
!
interface FastEthernet0/6
!
interface FastEthernet0/7
!
interface FastEthernet0/8
!
interface FastEthernet0/9
!
interface FastEthernet0/10
!
interface FastEthernet0/11
!
interface FastEthernet0/12
!
interface FastEthernet0/13
!
interface FastEthernet0/14
!
interface FastEthernet0/15
!
interface FastEthernet0/16
!
interface FastEthernet0/17
!
interface FastEthernet0/18
!
interface FastEthernet0/19
!
interface FastEthernet0/20
!
interface FastEthernet0/21
!
interface FastEthernet0/22
!
interface FastEthernet0/23
!
interface FastEthernet0/24
!
interface GigabitEthernet1/1
!
interface GigabitEthernet1/2
!
interface Vlan1
no ip address
shutdown
!
interface Vlan10
no ip address
!
interface Vlan20
no ip address
!
!
line con 0
!
line vty 0 4
login
line vty 5 15
login
!
!
end



S2#show running-config
Building configuration...
Current configuration : 1198 bytes
!
version 12.2
no service timestamps log datetime msec
no service timestamps debug datetime msec
no service password-encryption
!
hostname S2
!
!
!
!
spanning-tree mode pvst
!
interface FastEthernet0/1
switchport mode trunk
!
interface FastEthernet0/2
switchport access vlan 20
switchport mode access
!
interface FastEthernet0/3
switchport mode trunk
!
interface FastEthernet0/4
!
interface FastEthernet0/5
!
interface FastEthernet0/6
!
interface FastEthernet0/7
!
interface FastEthernet0/8
!
interface FastEthernet0/9
!
interface FastEthernet0/10
!
interface FastEthernet0/11
!
interface FastEthernet0/12
!
interface FastEthernet0/13
!
interface FastEthernet0/14
!
interface FastEthernet0/15
!
interface FastEthernet0/16
!
interface FastEthernet0/17
!
interface FastEthernet0/18
!
interface FastEthernet0/19
!
interface FastEthernet0/20
!
interface FastEthernet0/21
!
interface FastEthernet0/22
!
interface FastEthernet0/23
!
interface FastEthernet0/24
!
interface GigabitEthernet1/1
!
interface GigabitEthernet1/2
!
interface Vlan1
no ip address
shutdown
!
interface Vlan10
no ip address
!
interface Vlan20
no ip address
!
!
line con 0
!
line vty 0 4
login
line vty 5 15
login
!
!
end


C1#sh runn
Building configuration...
Current configuration : 1758 bytes
!
version 12.2
no service timestamps log datetime msec
no service timestamps debug datetime msec
no service password-encryption
!
hostname C1
!
!
!
!
!
ip routing
!
!
!
!
!
!
!
!
!
!
spanning-tree mode pvst
!
!
!
!
interface FastEthernet0/1
switchport trunk encapsulation dot1q
switchport mode trunk
!
interface FastEthernet0/2
switchport trunk encapsulation dot1q
switchport mode trunk
!
interface FastEthernet0/3
!
interface FastEthernet0/4
!
interface FastEthernet0/5
!
interface FastEthernet0/6
!
interface FastEthernet0/7
!
interface FastEthernet0/8
!
interface FastEthernet0/9
!
interface FastEthernet0/10
!
interface FastEthernet0/11
!
interface FastEthernet0/12
!
interface FastEthernet0/13
!
interface FastEthernet0/14
!
interface FastEthernet0/15
!
interface FastEthernet0/16
!
interface FastEthernet0/17
!
interface FastEthernet0/18
!
interface FastEthernet0/19
!
interface FastEthernet0/20
!
interface FastEthernet0/21
!
interface FastEthernet0/22
!
interface FastEthernet0/23
!
interface FastEthernet0/24
!
interface GigabitEthernet0/1
channel-group 1 mode desirable
switchport trunk encapsulation dot1q
switchport mode trunk
!
interface GigabitEthernet0/2
channel-group 1 mode desirable
switchport trunk encapsulation dot1q
switchport mode trunk
!
interface Port-channel 1
switchport trunk encapsulation dot1q
switchport mode trunk
!
interface Vlan1
no ip address
shutdown
!
interface Vlan10
ip address 192.168.1.2 255.255.255.0
standby version 2
standby 10 ip 192.168.1.1
standby 10 priority 150
standby 10 preempt
!
interface Vlan20
ip address 192.168.2.2 255.255.255.0
standby version 2
standby 20 ip 192.168.2.1
standby 20 preempt
!
ip classless
!
!
!
!
!
!
!
line con 0
!
line aux 0
!
line vty 0 4
login
!
!
!
end



C2#show running-config
Building configuration...
Current configuration : 1758 bytes
!
version 12.2
no service timestamps log datetime msec
no service timestamps debug datetime msec
no service password-encryption
!
hostname C2
!
!
!
!
!
ip routing
!
!
!
!
!
!
!
!
!
!
spanning-tree mode pvst
!
!
!
!
interface FastEthernet0/1
switchport trunk encapsulation dot1q
switchport mode trunk
!
interface FastEthernet0/2
switchport trunk encapsulation dot1q
switchport mode trunk
!
interface FastEthernet0/3
!
interface FastEthernet0/4
!
interface FastEthernet0/5
!
interface FastEthernet0/6
!
interface FastEthernet0/7
!
interface FastEthernet0/8
!
interface FastEthernet0/9
!
interface FastEthernet0/10
!
interface FastEthernet0/11
!
interface FastEthernet0/12
!
interface FastEthernet0/13
!
interface FastEthernet0/14
!
interface FastEthernet0/15
!
interface FastEthernet0/16
!
interface FastEthernet0/17
!
interface FastEthernet0/18
!
interface FastEthernet0/19
!
interface FastEthernet0/20
!
interface FastEthernet0/21
!
interface FastEthernet0/22
!
interface FastEthernet0/23
!
interface FastEthernet0/24
!
interface GigabitEthernet0/1
channel-group 1 mode desirable
switchport trunk encapsulation dot1q
switchport mode trunk
!
interface GigabitEthernet0/2
channel-group 1 mode desirable
switchport trunk encapsulation dot1q
switchport mode trunk
!
interface Port-channel 1
switchport trunk encapsulation dot1q
switchport mode trunk
!
interface Vlan1
no ip address
shutdown
!
interface Vlan10
ip address 192.168.1.3 255.255.255.0
standby version 2
standby 10 ip 192.168.1.1
standby 10 preempt
!
interface Vlan20
ip address 192.168.2.3 255.255.255.0
standby version 2
standby 20 ip 192.168.2.1
standby 20 priority 150
standby 20 preempt
!
ip classless
!
!
!
!
!
!
!
line con 0
!
line aux 0
!
line vty 0 4
login
!
!
!
end

Demon、

自个儿个

ysxltz1

大师就是牛啊，大牛
严重膜拜中……

ititie

什么目的
不通？什么不通？

Demon、

ititie 发表于 2013-10-7 12:01
什么目的
不通？什么不通？

PC0  PING  通PC1

ititie

Demon、 发表于 2013-10-7 13:34
PC0  PING  通PC1

各自到网关都好的吧

Demon、

ititie 发表于 2013-10-7 13:41
各自到网关都好的吧

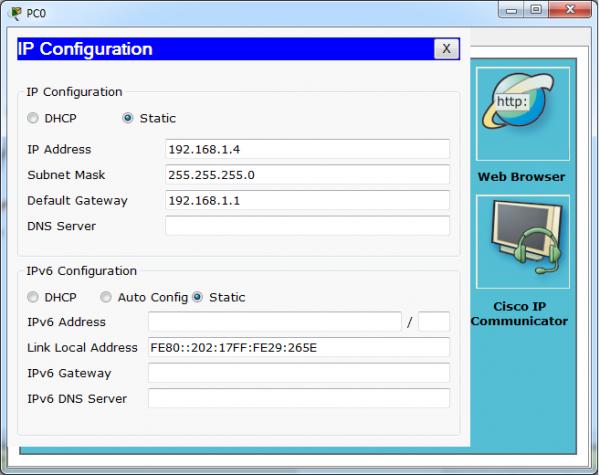

它们指向的网关就是虚拟IP，但是连PING虚拟IP都不通

lin08

二层接口都打trunk看看，建议在做链路聚合的时候先把三层接口先关了，不然有时候起不来

Demon、

lin08 发表于 2013-10-9 11:41
二层接口都打trunk看看，建议在做链路聚合的时候先把三层接口先关了，不然有时候起不来

PT做不了，我用GNS3做了就行了。
