发表于 2012-11-28 15:28:02
|
显示全部楼层

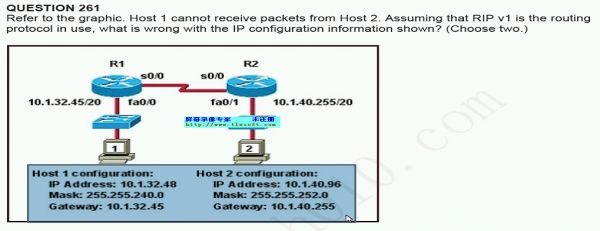

本题目存在以下问题,导致PC1和PC2通不了
1.PC2的IP:10.1.40.96/20的子网掩码应该是:255.255.240.0,而图中给配成了255.255.252.0
2.如果解决了1中存在的问题下,启RIPv1协议
那么R1配置应该是:Routing for Networks:
10.0.0.0
12.0.0.0
查看路由表显示的是:
Gateway of last resort is not set
10.0.0.0/20 is subnetted, 1 subnets
C 10.1.32.0 is directly connected, FastEthernet0/0
12.0.0.0/24 is subnetted, 1 subnets
C 12.12.12.0 is directly connected, Serial0/3/0
那么R2的配置是:
Routing for Networks:
10.0.0.0
12.0.0.0
show完路由显示的是:
Gateway of last resort is not set
10.0.0.0/20 is subnetted, 1 subnets
C 10.1.32.0 is directly connected, FastEthernet0/0
12.0.0.0/24 is subnetted, 1 subnets
C 12.12.12.0 is directly connected, Serial0/3/0
分析原因:由于图中启用的RIPv1,而RIPv1是有类地址,所以R1和R2在通告直连段的时候,都是12.0.0.0
和10.0.0.0,所以彼此之间获取不到对方非直连段的路由,所以通不了。
(3)扩展:那么如果换成RIPv2行不行
答案:也不行
分析:R1的两个直连段12.12.12.0 10.1.32.0
R2的两个直连段12.12.12.0 10.1.32.0
所以如果换成是RIPv2其实遇到的问题和RIPV1是一样的,也是因为R1和R2所连接的网段的地址都是一样的,所以彼此之间获取不了非直连网段之间的路由,所以你查路由表也是没有到达彼此的路由。 |
